為客戶提供技術選型、安裝指導和完善的售后服務

產品覆蓋全國港機重工、集裝箱碼頭、電廠、航運、鋼鐵廠及礦山等各大企業。

世界知名品牌

主要經營意大利ARISTONCAVI柔性電纜、德國PRYSMIAN柔性電纜、德國BROSA傳感器、HARTMAN電纜卷筒及集電環、日本神鋼鋼絲繩和德國DIEPA鋼絲繩等機電、機械產品

深受廣大港口碼頭及各種重工生產制造商的歡迎

/

/

/

SPREADERFLEX 吊具電纜（垂纜）





產品描述

Selection and ordering data

Number of cores and nominal cross-section mm2	Order No.	conductor diameter (guidance value) mm	Overall diameter of cable		Approx. net weight for 1000 m kg
Number of cores and nominal cross-section mm2	Order No.	conductor diameter (guidance value) mm	Min. value (guidance value)mm	Max. value (guidance value)mm	Approx. net weight for 1000 m kg
YSLTO – J
48×1*	5DE5 797	1.5	31.6	34.6	2250
30×2.5*	5DE5 798	2.6	31.6	34.6	2360
36×2.5*	5DE5 788	2.6	35.1	38.1	2800
42×2.5*	5DE5 790	2.6	37.5	40.5	3530
20×3.5	5DE5 777	2.4	30.3	33.3	2000
24×3.5	5DE5 778	2.4	32.0	35.0	2510
30×3.5	5DE5 780	2.4	34.9	37.9	2970
36×3.5	5DE5 781	2.4	38.9	41.9	3950
42×3.5*	5DE5 785	2.4	43.4	46.4	5020

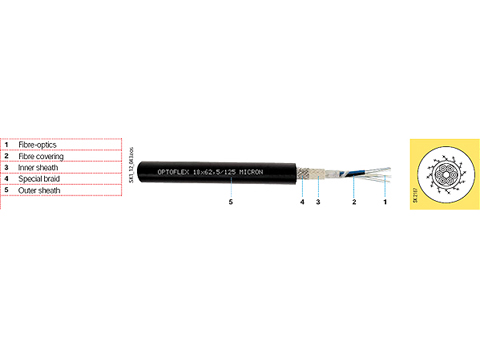

YSLTO- J with integrated fibre-optics		(For details of fibre-optics, please refer to OPTOFLEX 62.5/125, page 2/24)
32×3.5+4×1LWL	5DE5 782	2.4	38.9	41.9	3750
